DIY Boat Lift: How to Build One Yourself and What It Costs

Eric DawsonByEric Dawson Boats & Cruises

A do-it-yourself boat lift is achievable for a boater willing to weld or bolt together a galvanized steel frame, add a manual or electric winch, and mount padded bunks under the hull, and it can cost less than buying a finished commercial unit. Most lift manufacturers and dock installers still recommend hiring a professional, though, since a poorly built frame can fail under load, damage the boat it is supposed to protect, or void the warranty on any winch, motor, or hydraulic pump you buy. Building one yourself tends to work best for a small boat on a simple manual system, paired with careful planning, marine-grade materials, and a local permit secured before construction starts. This guide covers the materials list, the build steps, what a DIY lift actually costs against a commercial one, and when paying an installer makes more sense than doing it alone.

What You Need to Build a DIY Boat Lift

Four things make up a DIY boat lift: a corrosion-resistant frame, a lifting mechanism, padded bunks to cradle the hull, and marine-grade hardware to hold it together. Skipping any one of these categories is where most homemade lifts run into trouble.

DIY Boat Lifts

DIY Boat Lifts

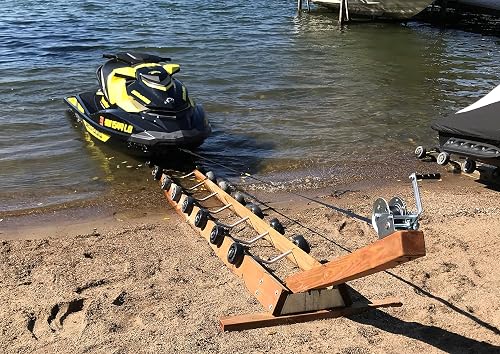

DIY boat lift components and kits raise watercraft above the water for storage, maintenance, and protection from hull buildup. Options include manual, electric, and hydraulic systems, with differences in lifting capacity, frame material, mounting style, cradle configuration, and suitability for different boat sizes.

Check on Amazon

As an Amazon Associate we earn from qualifying purchases.

  • Galvanized steel or aluminum pipe for the structural frame
  • A manual or electric winch system to raise and lower the boat
  • Marine-grade cables, lifting straps, or pulleys rated for the boat’s weight
  • Stainless steel nuts, bolts, and washers that will not rust in the water
  • Wooden bunks wrapped in marine carpet to protect the hull
  • Water-resistant decking, either plastic or marine-grade wood
  • Pilings or posts to anchor the frame to the seabed
  • A concrete or dock-mounted anchoring system to keep the whole structure from shifting

DockStop and EZ Dock both list corrosion resistance as the deciding factor between a lift that lasts and one that needs rebuilding within a few seasons. Cheaper untreated steel might save money on the initial build, but saltwater and constant moisture will eat through it far faster than galvanized steel, aluminum, or stainless hardware.

How to Build a Do It Yourself Boat Lift Step by Step

Building a DIY boat lift follows six stages in order: measuring and planning, constructing the frame, installing the lifting mechanism, mounting the bunks, anchoring the structure, and testing it before real use. Skipping ahead on any of these steps is how a lift ends up unstable or undersized.

  1. Measure and plan. Record the boat’s length, beam, and total weight, then sketch a frame sized to match, since an undersized frame is the single most common design mistake.
  2. Build the frame. Cut and join galvanized steel or aluminum pipe with welded or bolted joints, keeping every connection strong enough to hold the boat’s full weight plus a safety margin.
  3. Install the winch and pulleys. Mount the manual or electric winch and route the marine-grade cables or straps through the pulleys so the lifting force stays even on both sides of the frame.
  4. Mount the bunks. Attach the marine-carpeted wooden bunks where they will cradle the hull without putting pressure on any single point.
  5. Anchor the system. Secure the frame to pilings, posts, or a concrete and dock-mounted anchoring system so wind, current, and boat traffic cannot shift it.
  6. Test before use. Run the lift up and down several times without the boat aboard, checking every weld, bolt, and cable under load before trusting it with an actual vessel.

Choosing a Lifting System

The lifting mechanism you pick determines how much of the build a typical boater can manage alone. Manual winch systems are the simplest and most affordable option, and they are the easiest for a first-time builder to install without outside help. Electric winch systems lift with less physical effort but need a reliable power supply run out to the dock. Hydraulic systems handle heavier boats well, though EZ Dock notes they require more mechanical expertise than most home builders have on hand. LOTO Lift markets a pneumatic option built specifically for self-installation, and the company says its systems can operate in as little as 24 inches of water, which suits boaters on shallower shorelines who cannot use a piling-mounted design.

Manual Boat Lift Winches

Manual Boat Lift Winches

Manual boat lift winches use a hand crank and cable or strap to raise and lower boats on compatible lift systems. Compare lifting capacity, gear ratio, mounting style, corrosion resistant materials, cable length, and brake or locking mechanisms.

Check on Amazon

As an Amazon Associate we earn from qualifying purchases.

What Materials Work Best for a DIY Boat Lift

Aluminum and stainless steel outlast untreated steel on a boat lift, particularly in coastal or saltwater settings where corrosion sets in fast. HONC Docks & Lifts points to material choice as one of the clearest predictors of how long a homemade lift will last before parts need replacing.

Marine-grade cables and hardware matter just as much as the frame itself. A winch cable rated for general use, rather than marine service, can corrode and snap under load well before a boater expects it to fail. Corrosion-resistant materials cost more up front, but they extend the working life of the lift enough to offset that difference over several seasons on the water.

How Much Does a DIY Boat Lift Cost

A DIY boat lift saves money mainly by skipping the professional installation fee, which runs $500 to $3,000 or more depending on complexity, while the frame, winch, cables, and hardware still have to be bought or built at real cost either way. As of September 2026, commercial boat lifts range from about $2,500 for a small manual model to more than $25,000 for a large hydraulic system, and a self-installed build only avoids one piece of that total.

Lift Type Equipment Cost Professionally Installed Cost Best For DIY Friendliness
Manual Vertical $2,500 to $8,000 $3,000 to $11,000 Small boats, personal watercraft Simplest mechanically
Powered Vertical $5,000 to $18,000 or more $5,500 to $21,000 or more Medium-size boats Needs electrical work
Hydraulic $10,000 to $25,000 or more $10,500 to $28,000 or more Large or heavy boats Complex, not DIY-friendly
Floating or Pneumatic $7,000 to $12,000 $7,500 to $15,000 Variable water levels LOTO Lift offers DIY-oriented models

More complex jobs push costs higher still. Piling work, electrical wiring, and dock reinforcement can add several thousand dollars on top of the base numbers above, according to Dock Gear Supply’s pricing breakdown.

Worked Example: What You Might Actually Save

Take a boater eyeing a manual vertical lift, priced at $2,500 to $8,000 in equipment and $3,000 to $11,000 installed by a professional. Building the frame and doing the installation without a contractor could realistically avoid the $500 to $3,000-plus labor charge that sits between those two figures.

That leaves a builder still needing to buy the winch, marine cables, bunks, and anchoring hardware, none of which show up as a separate published price, so the true savings land closer to the labor fee than to the full retail difference between equipment and installed cost.

A boater who values their own time at anything meaningful should weigh that labor savings against the hours a welded frame and a tested lifting system actually take to build correctly.

Building a boat lift yourself is legal in most areas, but nearly every jurisdiction requires a permit before construction begins, and some local governments mandate that only a licensed professional can install one. Skipping that step is not a minor paperwork issue: DockStop and HONC Docks & Lifts both warn that building without a permit can lead to fines and legal trouble later, including a forced teardown if the structure does not meet local code.

Warranty coverage adds a second layer to the legal picture. Dock Gear Supply, ShoreMaster, and LOTO Lift all describe commercial lifts as typically requiring certified professional installation to keep the warranty intact, so a manufactured winch or hydraulic pump installed by an owner may lose its coverage the moment it is bolted to a homemade frame. Checking permit rules with the local building or waterfront authority, and warranty terms with the equipment manufacturer, before buying anything is the only way to avoid an expensive surprise on either front.

Is a DIY Boat Lift Safe

A DIY boat lift can be safe when it is engineered and built correctly, but manufacturers are blunt about what happens when it is not: equipment failure, boat damage, or personal injury. ShoreMaster puts it plainly, warning that incorrect installation can damage your boat lift or even your boat itself.

Poor construction tends to cost more in the long run than hiring a professional from the start, according to HONC Docks & Lifts, since a failed weld or an undersized winch often means rebuilding the entire lift rather than patching one part.

ShoreMaster goes further, describing faulty installation as a source of catastrophic, and costly, consequences for the boat sitting in the lift. Different lift types carry different risks, too. A hydraulic system that is not installed correctly behaves differently from a manual winch that is simply undersized, and each requires its own specialized know-how to get right the first time.

Should You Build Your Own Boat Lift or Hire a Professional

Hiring a professional is the safer choice for most boaters, especially for anything beyond a small boat on a simple manual system, while a DIY build can work for a handy owner with the right materials, a permit, and realistic expectations about the labor involved. ShoreMaster, a major lift manufacturer with decades of installation experience, states that you can technically install a boat lift on your own, and the company’s lighter-weight designs are built to make that easier than some competing products.

That acknowledgment comes with a caveat, though: ShoreMaster still recommends professional installation for most customers, citing warranty protection, code compliance, and site-specific factors like water depth and bottom conditions that a professional is trained to assess. LOTO Lift takes a different stance, actively marketing its pneumatic lift systems as viable for self-installation and pointing to cost savings as the main draw.

Between the two positions, ShoreMaster’s carries more weight on safety and warranty questions, given its standing as an established manufacturer, while LOTO Lift’s pitch is more credible for its own specific product category, a lighter pneumatic system meant from the start for an owner to install.

Larger or permanent installations lean toward professional expertise almost every time, since the margin for error grows with the size and weight of the boat involved. A small aluminum lift for a personal watercraft carries far less risk than a hydraulic system rated for a 30-foot cruiser, and that gap in stakes is a reasonable way to decide which side of the DIY line a given project falls on.

For a do it yourself boat lift, I value a maker’s PDF manual because it turns the permit check and weight limit into instructions, not optimistic folklore, a category in which I could easily become a minor cautionary tale. In Should You Build Your Own Boat Lift or Hire a Professional, I see the DIY case stopping at a simple manual lift for a small boat; powered or heavier systems deserve professional expertise.

Frequently Asked Questions

How Much Does It Cost to Build a Boat Lift Yourself?

A DIY build mainly saves the $500 to $3,000-plus professional installation fee, while equipment costs stay close to commercial pricing, which runs from about $2,500 for a small manual lift to more than $25,000 for a large hydraulic system. The exact savings depend on the frame materials, the lifting system chosen, and how much labor an owner can do without a contractor.

Does Building Your Own Boat Lift Void the Warranty?

It can. Manufacturers typically require certified professional installation to keep a commercial lift’s warranty active, so installing a purchased winch, hydraulic pump, or lift kit yourself may void that coverage. Checking the warranty terms before buying equipment is the only way to know for certain.

What Size Boat Can a DIY Lift Handle?

Small boats and personal watercraft on a manual vertical lift are the most realistic DIY project, since that system is the simplest mechanically and carries the lowest risk if something is built slightly wrong. Larger or heavier boats need powered, hydraulic, or floating systems that manufacturers and installers consider poor candidates for a first-time self-install.

Do You Need a Permit to Build a Boat Lift?

Yes, in nearly every jurisdiction. Local permits are required before construction begins, and building without one can lead to fines or a forced teardown if the finished structure does not meet code. Some areas go further and require a licensed professional to handle the installation entirely.

Is a Pneumatic Boat Lift Easier to Build than a Traditional One?

It can be, depending on the site. LOTO Lift markets its pneumatic systems specifically for self-installation, and the company says they can operate in as little as 24 inches of water, which suits shallow shorelines where a piling-mounted frame is not practical. That does not make a pneumatic build simple, only better suited to certain water conditions than a manual or hydraulic alternative.

Weigh the labor a DIY boat lift actually demands against what a professional installer charges before committing to build one. A small boat on a manual system, built with corrosion-resistant materials and a proper permit, is the project most likely to go well without expert help, while anything larger belongs with a licensed installer who can guarantee the warranty and the safety of the boat it is meant to protect.
